Project Description
Overview

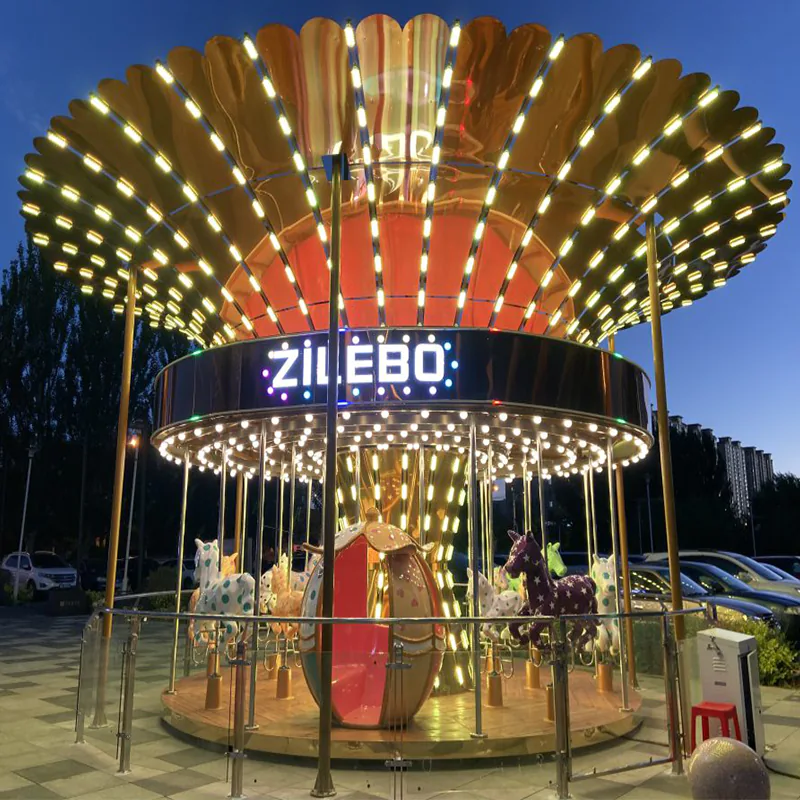

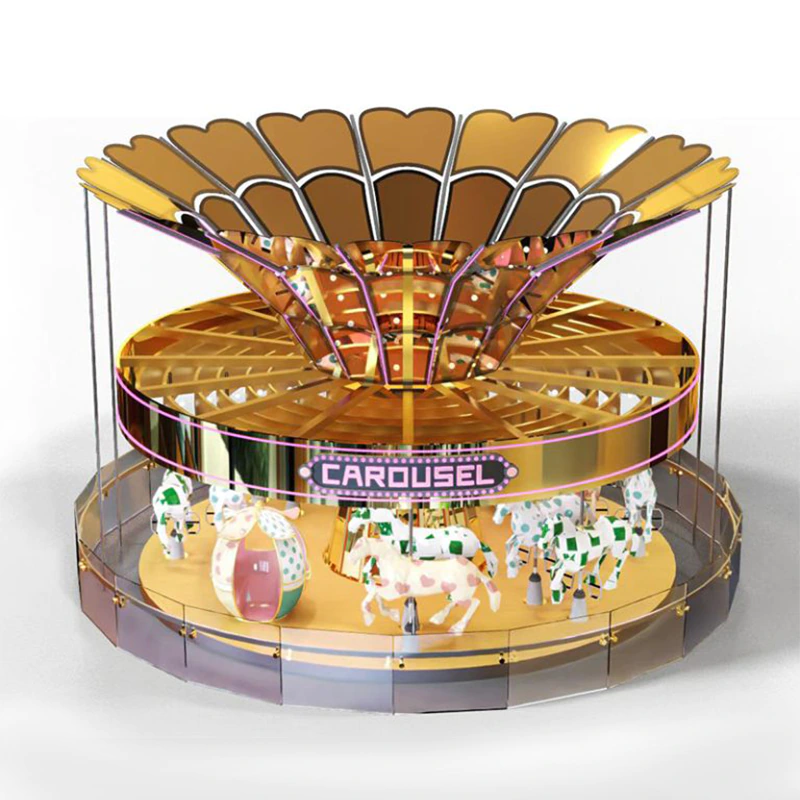

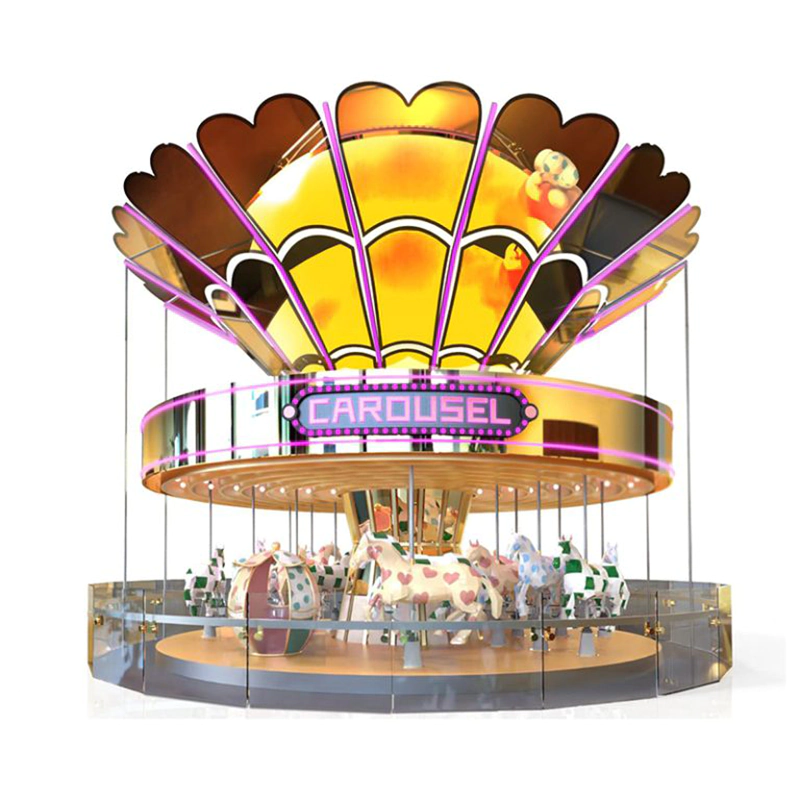

This equipment belongs to the carousel series carousel amusement machine. Its main movement feature is to rotate and lift around the vertical axis. This equipment uses a cylindrical structure as the central column to support the weight of the entire equipment. The turntable used for carrying people is suspended on the canopy composed of cantilevers (trusses) through booms. The canopy is installed on the top of the center column through the center support. The geared motor drive system installed on the center column drives the center support ring gear through gear meshing to drive the roof and the turntable to rotate.
Working principle
The whole equipment is divided into two parts, namely the rotating part and the fixed part, but the rotating part and the fixed part are separated by the slewing bearing, and the slewing bearing occupies an important position in the whole equipment. Therefore, when installing and debugging, the slewing bearing must be placed horizontally so that the entire rotating frame can be stable without swinging and noise. The corresponding slewing bearing must be well lubricated to ensure its service life
Technical Parameters:
Capacity: 24 seats
Speed: 3.322r/min=1.74m/s
Total height: 7m
Input voltage: 380V±5% TN-S system
Power: 7.5KW drive + 2.5KW decoration
Occupation: φ10m. The diameter of the top umbrella is 12 meters
Control: frequency conversion (frequency: 50Hz) speed regulation start and stop
Rotation diameter: Φ8.6m
Power: 380V AC three-phase four-wire 8KW
Horse lifting height: 0.18m
Total weight of equipment: 6T/floor requires 300 kg/square
Application range:amusement park、playground、theme park
Operation control mode has manual and automatic mode
⑴ The operation process and control of the carousel are: external power supply – system power on – lights and audio on – passengers enter the seat – start – run – end of running time – stop – passengers leave; The next operation; the end of the whole day’s operation – turn off the lights and sound – the operator leaves the operating room – cut off the external power supply.
(2) Steps that require signal detection and control:
①. Before starting, there must be a signal transmission, and the passenger has been in place before the equipment can be started. Otherwise, accidental injury may easily occur.
②. Shut down after the running time is up;
The product is suitable for environmental conditions
Altitude: <2000 meters
Temperature: -5℃～45℃
Humidity: <95%
Wind speed: <15m/s
