Project Description
Best Theme Park Rides For Sale|China Carnival Fair Rides Manufacture|Spinning Fair Rides Made In China

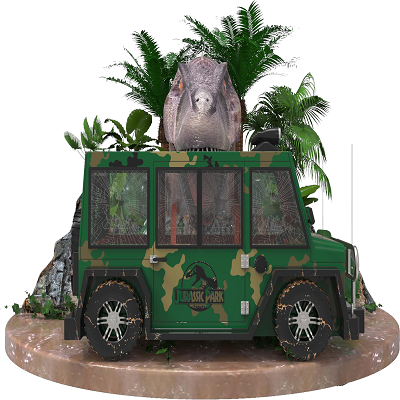

Jurassic Park Amusement Ride Introduction
It is a 1993 sci-fi adventure film, adapted from Michael Crichton’s novel of the same name published in 1990 and produced by Universal Pictures. The film mainly tells the story of Dr. Hammond convening a large number of scientists to use the body of a prehistoric mosquito condensed in amber. The blood of the dinosaurs was extracted to extract the genetic genes of the dinosaurs, and the prehistoric behemoth that had been extinct for 65 million years was resurrected, making the entire Nublar Island a paradise for dinosaurs, that is, “Jurassic Park”.
The unfortunate thing happened. Although the park is managed by a computer system, it was destroyed by employees and caused an irreversible loss of control: all the dinosaurs escaped from the control area, and people fled but could not escape the clutches of the dinosaurs.
Dinosaurs killed each other, and people died countless times. In the end, there were very few survivors, and only four escaped. There is an air of terror in the sky over Nublar Island.
Amusement Ride Story Introduction
One fine morning, Sean and his expedition team drove a military jeep slowly into the dense jungle on the north side of Jurassic Park… This is the most dangerous place in Jurassic Park. The area “Carnivorous Dinosaur Zone” is also the habitat of the most ferocious dinosaur king “Rex Tyrannosaurus”.
The purpose of this trip was to collect DNA from the excreta of “Tyrannosaurus rex” for conservation genetics and molecular ecology studies.
As the car continued to move forward, everyone held their breath, and the atmosphere instantly became solemn… Suddenly the surrounding leaves were rustling, the ground was shaking, and the tree trunks were shaking.
The scene that everyone is most reluctant to encounter happened. A huge and ferocious Tyrannosaurus sprinted from the front. Before the expedition team members could relax, a huge mouth bit the car and instantly lifted it off the ground. … the wheels are spinning, the lights are flashing, the metal is ripping, and people’s exclamations echo through the jungle…
It’s too late to say it, and the witty Captain Sean asked the team to quickly grab the grenade launcher beside him, and instantly shot a flash grenade to hit the nearby tree trunk. The huge sound and dazzling white light really made the Tyrannosaurus jump. , hurriedly loosened his mouth and turned to escape into the depths of the jungle.
The team members were saved. Captain Sean stepped on the accelerator to increase his horsepower and shouted loudly: “It seems that the Tyrannosaurus is not interested in us! Hold on to the handrail! We are back to the base!!” With the roar of the engine, the jeep rushed out of the jungle , disappeared into the billowing smoke.
Amusement Ride Parameter
| Name | Numerical value | Remark |
|---|---|---|
| Operating Voltage | AC380V 50Hz | Three-phase five-wire |
| Motor Power | 13kW | Motor power 11kW, lighting power 2kW |
| way of action | The carrier swings and tilts up, down, left, right | / |
| Rated passenger/load | 8 people / ≤450kg | / |
| turn around | Clockwise, counterclockwise (forward and reverse) | / |
| Passenger height restrictions | Height range of passengers in the first row seat: 850-1700mm Height range of passengers in the second row seat: 850-1780mm Passenger height range in the third row seat: 850-1800mm |
/ |
| Timing setting range | 1-10min range adjustment, standard running time 3min | / |
| running speed | ＜ 2m/s | / |
| Operating height (seat surface) | ＜ 2m | / |
| total equipment | About 4.5T | / |
| floor space | 6.7 × 5m | with fence |
| Ground load-bearing requirements | 300kg/㎡ | It is recommended that the equipment be erected above the load-bearing beam |
| total equipment height | 4.5m | The maximum height at which the device operates |
Amusement Rides Feature Description
The domineering shape of the simulated dinosaurs attracts attention. It is not purely a mechanical product, but also a unique landscape of the venue;
Simulate tree collocation to build game scenarios;
The carrier makes multi-directional shaking movements, creating a stimulating somatosensory for players;
The front of the carrier is equipped with liquid crystal, and has exclusive game animation content, allowing players to experience the game as if they were on the scene;
There is a ventilation and exhaust system in the carrier to increase comfort;
Equipped with a smoke spray system, and the wheels of the carrier can rotate by themselves during the game, enhancing the scene special effects;
Multiple safety mechanisms and electrical protection to ensure the safety of players;
Can be placed outdoors or indoors;
There are PLC version and single chip control system version;
A monitoring system can be installed to check the game situation of players in the carrier at any time, so as to prevent individual players from having uncomfortable reactions during the game, and make real-time observations on this;
Amusement Ride Technical Description
The design is completed with reference to the combination of the excavator and the six-axis robot with the action mode and structural characteristics. The base adopts a frame structure, which is rigid, firm and stable.
The swivel arm base adopts welded frame and large-load slewing support, the hydraulic system pressure is 16MPa, and the working pressure is 10-14MPa. The total flow and pressure can fully satisfy the simultaneous operation of 3 oil cylinders and 2 hydraulic motors for more than 15 seconds. When stopping, the B cylinder and C cylinder can return to the original position at the same time, and the E cylinder starts the car body to move to the right position, and returns to the original position smoothly.
The hydraulic system is equipped with corresponding liquid level gauge, accumulator, air filter, pressure gauge, oil filter, etc.
Cooling method: air cooling.
